Máquina perfiladora de losa metálica | ZHONGYUAN
propiedad
- Espesor del material
- 0.8-1.5mm
- Velocidad de formado
- 10-15m/min
- Material del eje
- 40Cr, Heat Treated
- Material del rodillo
- 45# Forged Steel, Chrome Plated
- Método de corte
- Hydraulic Cutting
- Sistema de control
- PLC + Touch Screen
- Potencia del motor principal
- 7.5kW
- Voltaje
- 415V/50Hz/3Phase
Evaluacion
Descripción

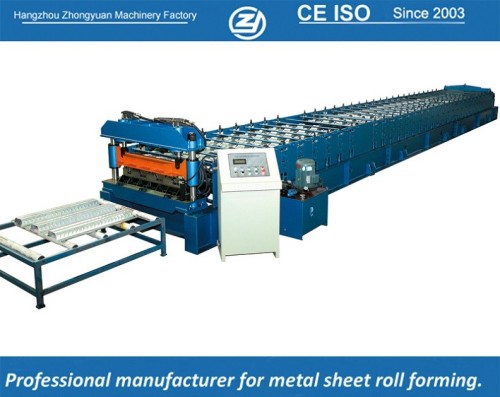

Metal Deck Roll forming machine
Product application:
The metal deck produced by floor deck forming machine is used as decking of building; It has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight. With the same bearing capacity, it economized steel and cuts down investment accordingly.
| Technical data of decking roll forming machine | |
|---|---|
| Material adecuado | Q235 color steel sheet;0.8-1.2mm, |
| Velocidad de formado | about 18-20m/min |
| Requisito de potencia | Potencia del motor principal: 11X2 Kw(Depend on final design) |
| Potencia de la estación hidráulica: 5.5Kw(Depend on final design) | |
| Material de los rodillos formadores | No.45 steel, plated with chrome on surface. |
| Material del cortador | Cr12 mould steel with quench treatment, HRC58-60 |
| Material del eje | High quality 45# steel with heat treatment. Roller grinder milling. |
| Diámetro del eje | 82mm |
| Sistema de control | Mitsubishi PLC & converter |
| Peso total de la máquina | About 16500KGS |
| Dimensiones de la máquina | about 26m×1.8m× 1.5m (Depend on final design) |
| Envío | 1x40GP and 1X20GP containers can load one machine |
Forming system
Bearings inside rollers:
Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.
Machine shafts for rollers
1. Shaft material is No.45 steel with diameter 72mm, strong and durable.
2. Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.
rollers assembly of Metal deck roll forming machine
Controller
once you set quantity and length of product,machine will produce product automatically.
Our Metal Roll Forming Machine’s advantages
1.Velocidad de formado: 18-20m per minute .
2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
3. . Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
6. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
