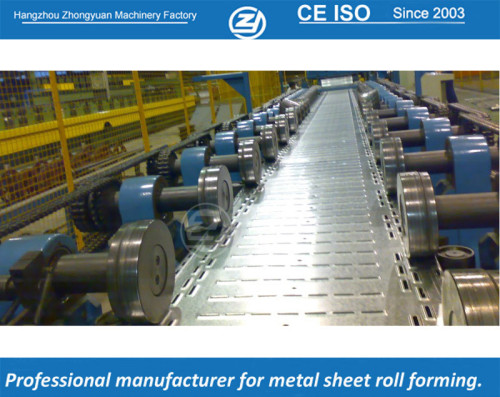

Cable Tray Roll Forming Machine - Mitsubishi PLC | ZHONGYUAN
propiedad
- Espesor del material
- 0.8-2.5mm
- Velocidad de formado
- 8-12m/min
- Material del eje
- 40Cr, Heat Treated
- Material del rodillo
- 45# Forged Steel, Chrome Plated
- Método de corte
- Hydraulic Cutting
- Sistema de control
- Mitsubishi PLC + Touch Screen
- Potencia del motor principal
- 5.5kW
- Voltaje
- 415V/50Hz/3Phase
Evaluacion
Descripción
Cable tray forming machine
| Technical data of cable tray forming machine | |
|---|---|
| Suitable raw material | Q235A galvanized steel sheet; thickness:1.0-1.5mm |
| Velocidad de formado | About 8-10m/min. |
| Production speed | About 3m/min. |
| Material de los rodillos formadores | Cr12 mould steel being quenched treatment, |
| Material del cortador,punching die | Cr12 mould steel with quench treatment, HRC58-60 |
| Material del eje | High quality 45# steel with heat treatment. Roller grinder milling. |
| Type of cutting | After roll-formed and length-set cutting |
| Total motor power | about 35Kw(Depend on final design) |
| Control system | Mitsubishi PLC & converter |
Cable tray sample from machine
Product sample from machine,width of sheet is adjustable.
Our Roll Forming Machine’s advantages
1.Anti-rust roller: Cr12 mould steel being quenched treatment,HRC58-60,
CNC machine tooled to increase rollers precision.
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
